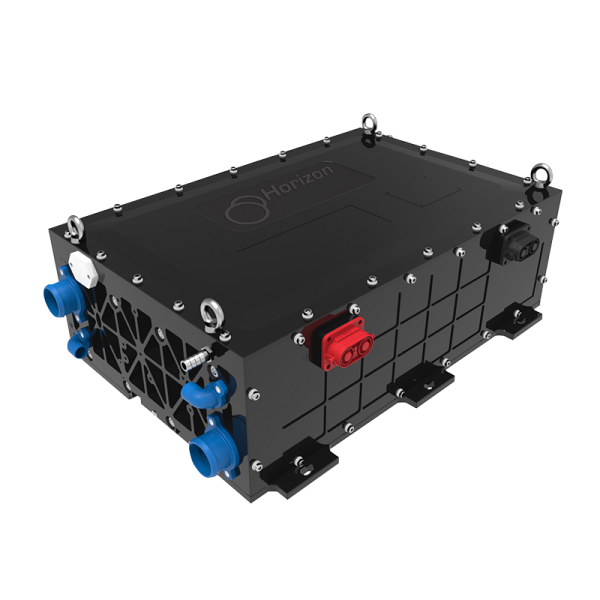

40kW Liquid Cooled FC System VL-Series
This is the second fuel cell stack of the mid-range fuel cells that Horizon offers, and its power profile positions this fuel cell stack well to be used in a number of mobility applications. It is possible to use this fuel cell system in forklift operations, but the possibilities also extend to more demanding tasks in agriculture and construction. With this kind of fuel cell stack it is possible to create a full range of zero emission construction vehicles, and the operators of these vehicles will benefit from the low noise profile that is a hallmark of hydrogen fuel cell technology.
For vehicle enthusiasts who love to modify vehicles of all kinds, this fuel cell stack offers a lot of possibilities. It can be used to breath zero emission life back into an old car or truck, or it can be used as a fun experiment at creating a homemade zero emission vehicle (ZEV)!
40kW Liquid Cooled Fuel Cell VL-Series
Additional Infromation
Please complete a quote request form in order to request pricing information as well as to get proper delivery expectations. We also encourage you to provide any additional information about your project so that we can help you determine if any additional components will be needed.
University Note
For colleges and universities looking to expand their hydrogen and fuel cell curriculum with additional tools, Heliocentris offers products that are designed to be integrated into university classes. Like the products that Horizon Fuel Cell Shop offers, the Heliocentris Academia International products pair multiple renewable energy sources like fuel cells, solar panels, and wind turbines in order for students to learn more about how using multiple renewable energy sources can work together to achieve zero emission communities. Heliocentris products can also be purchased through our Fuel Cell Shop, and you can also go to the website for Heliocentris in order to learn more about the products that it offers.
Fuel Cell and Hydrogen
Safety Requirements
Do not attach or detach power cables when the fuel cell stack is turned on.
Warranty is void if the fuel cell stack is dismantled or otherwise modified.
Hydrogen is a colorless, odorless, and flammable substance. Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation.
Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any hydrogen that has escaped within the system or from the hydrogen storage canister.
Please refer to the VL II-40M User Manual to see the full list of the safety requirements for the product.
List of core VL-40 components and their functionality:
- Air filter (Prevents damaging size particles from entering fuel cell)
- Air flow meter (Monitoring feedback of air flow)
- Hydrogen heat exchanger (Increase the temperature of hydrogen)
- Intercooler (Reduce the temperature of the air entering the stack)
- Humidifier (Adds humidity to the air entering the stack)
- Throttle (Adjust the internal operating pressure of the stack)
- PTC heater (Heating of low temperature cold start)
- Water tank (Refill water to and exhaust the system)
- Deionizer (Absorbs the ions in the coolant, reducing the conductivity of the coolant)
- Water pump (Power the cooling system)
- Low voltage distribution box (Provide low voltage distribution to the system)
- Controller (Control system, communication between system and vehicle)
- Fuel cell stack (Oxygen and hydrogen react to produce power)
40kW Liquid Cooled Fuel Cell VL-Series Quick Product Facts
System Rated Power
This system power output is 40kW.
Stack Rated Power
The fuel cell stack gives 53kW of output power.
Number of Cells
This fuel cell stack is composed of 220 fuel cells.
Voltage Current Output
The voltage current output of the fuel cell stack is 132 volts at 400 amperes.
DC Output Voltage
Direct current output voltage reaches 220 to 420/450 to 650 volts
Fuel Cell Efficiency
Minimal fuel cell efficiency at rated power is 47.8%.
Ambient Temperature
The fuel cell stack operates best in a temperature ranging from -22 to 113° F / -30 to 45° C.
Stack operating temperature
The fuel cell stack operates best in a temperature ranging from 70 to 80°C / 158 to 176°F.
FC System Weight
The stack (including DC and radiator) weighs 319lbs / 145kg.
System dimensions
This fuel cell system dimensions are 890 x 600 x 520mm / 35 x 24 x 20″
Hydrogen Pressure
Hydrogen must be fed into the fuel cell stack at a pressure of 1.1-1.3 MPa.
Hydrogen Purity
A fuel of gaseous hydrogen at a minimum purity level of 99.97% is required.
Packing Information
| VL-05 | VL-10 | VL-30 | VL-40 | VL-65 | VL-100 | VL-120 | ||
|---|---|---|---|---|---|---|---|---|
| System rated power output (kW) * | 5 | 10 | 30 | 40 | 65 | 100 | 120 | *does not include cooling fan power and boost DC efficiency |
| Stack rated power output (kW) | 6 | 12 | 36 | 53 | 79 | 120 | 150 | |
| Number of cells | 65 | 90 | 150 | 220 | 330 | 500 | 500 | |
| Operating ambient temperature (℃) | -10 to +40 | -10 to +40 | -30 to +45 | -30 to +45 | -30 to +45 | -30 to +45 | -30 to +45 | |
| Storage ambient temperature (℃) | -40 to +60 | -40 to +60 | -40 to +60 | -40 to +60 | -40 to +60 | -40 to +60 | -40 to +60 | |
| Operating ambient humidity (%) | 0 to 95 | 0 to 95 | 0 to 95 | 0 to 95 | 0 to 95 | 0 to 95 | 0 to 95 | |
| Operating pressure (kPa) | up to 50 | up to 50 | 80 to 100 | 80 to 100 | 80 to 100 | 80 to 100 | 120 to 150 | |
| IP rating | IP54 | IP54 | IP67 | IP67 | IP67 | IP67 | IP67 | |
| Vibration noise (dB) | up to 80 | up to 80 | up to 78 | up to 78 | up to 78 | up to 78 | up to 90 | |
| Voltage current output | 125A@48V | 222A@54V | 400A@90V | 400A@132V | 400@198V | 400@300V | 500A@300V | |
| System dimensions (mm) ** | 630 x 560 x 610 | 630 x 560 x 610 | 742 x 686 x 637 | 890 x 600 x 520 | 970 x 600 x 516 | 1200 x 790 x 520 | 1200 x 680 x 630 | ** radiator, touch screen, booster DC or air compressor not included |
| System weight (kg) *** | 170 | 180 | 135 | 145 | 170 | 238 | 290 | *** booster DC not included |
| DC output voltage (V) | 48 | 48/80 | ||||||
| Boost DC output voltage (V) | 300 to 450 | 500 to 700 | 500 to 700 | 500 to 700 | 500 to 700 | |||
| System mass power density (W/kg) **** | 220 | 275 | 382 | 420 | 505 | *** booster DC not included | ||
| Fuel cell stack volume ratio power (kW/l) | 3.5 | |||||||
| Stack operating temperature (℃) | 60 to 70 | 60 to 70 | 70 to 85 | 70 to 80 | 70 to 80 | 70 to 80 | 70 to 85 | |
| H2 purity (% dry hydrogen) | 99,97 | 99,97 | 99,97 | 99,97 | 99,97 | 99,97 | 99,97 | |
| Average H2 consumption at rated power (m3/kWh) | up to 0,73 | up to 0,73 | up to 0,73 | up to 0,73 | up to 0,73 | |||
| Fuel Cell efficiency at rated power (%) | at least 42 | at least 42 | at leas 47,8 | at least 47,8 | at least 47,8 | at least 47,8 | at least 47,8 | |
| Hydrogen inlet pressure (Mpag) | 0,6 to 1.0 | 0,6 to 1.0 | 1,1 to 1,3 | 1,1 to 1,3 | 1,1 to 1,3 | 1,1 to 1,3 | 1,1 to 1,3 |
