100W Hydrogen Fuel Cell

100W PEM Fuel Cell Stack Overview

This larger sibling to the 60W fuel cell stack from Horizon Fuel Cell Technologies works well for beginner mobility applications such as drones that collect garbage or for weather stations where electricity is needed to transmit data to another location.  The dimensions of the fuel cell are sufficient to allow a few solar panels to be positioned onto a structure that goes around the fuel cell, which would provide 24x7 electricity production regardless of weather conditions.

The following components are included with this fuel cell stack:

  • Connection tubing
  • Electronic Valves
  • Electronic Control Box
  • Fuel Cell On/Off Switch
  • SCU On/Off Switch

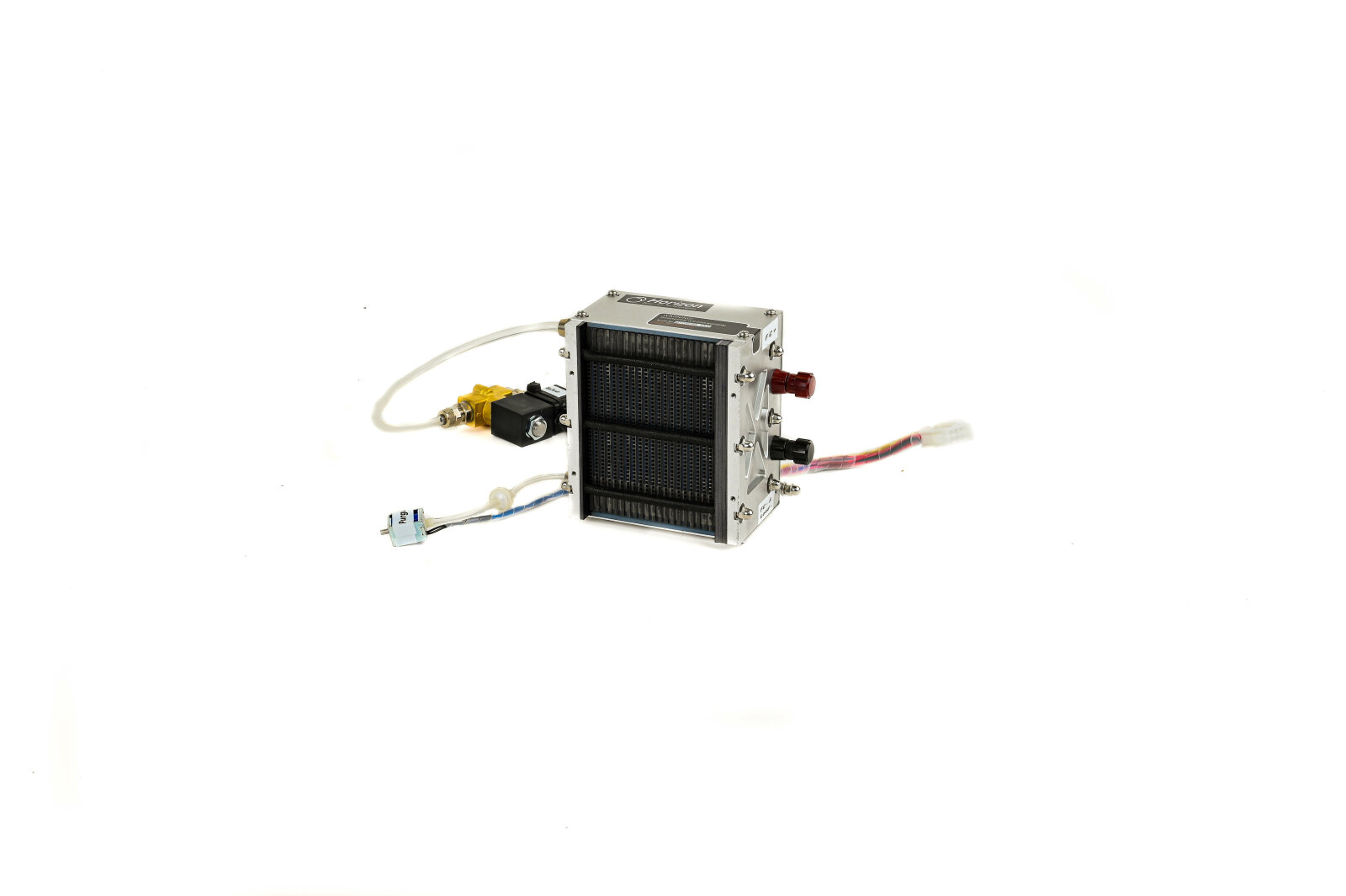

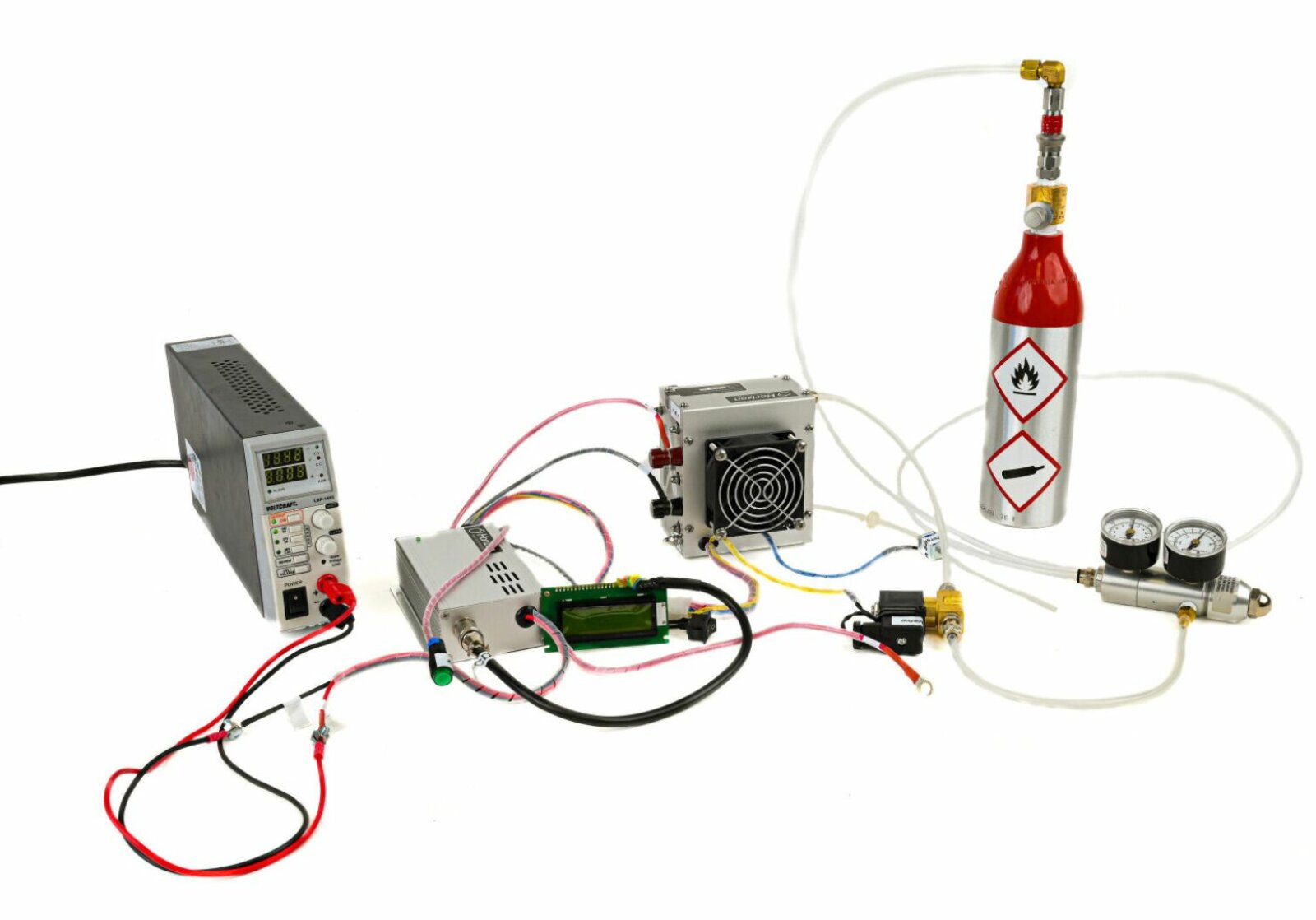

H-100 PEM Fuel Cell - 100W

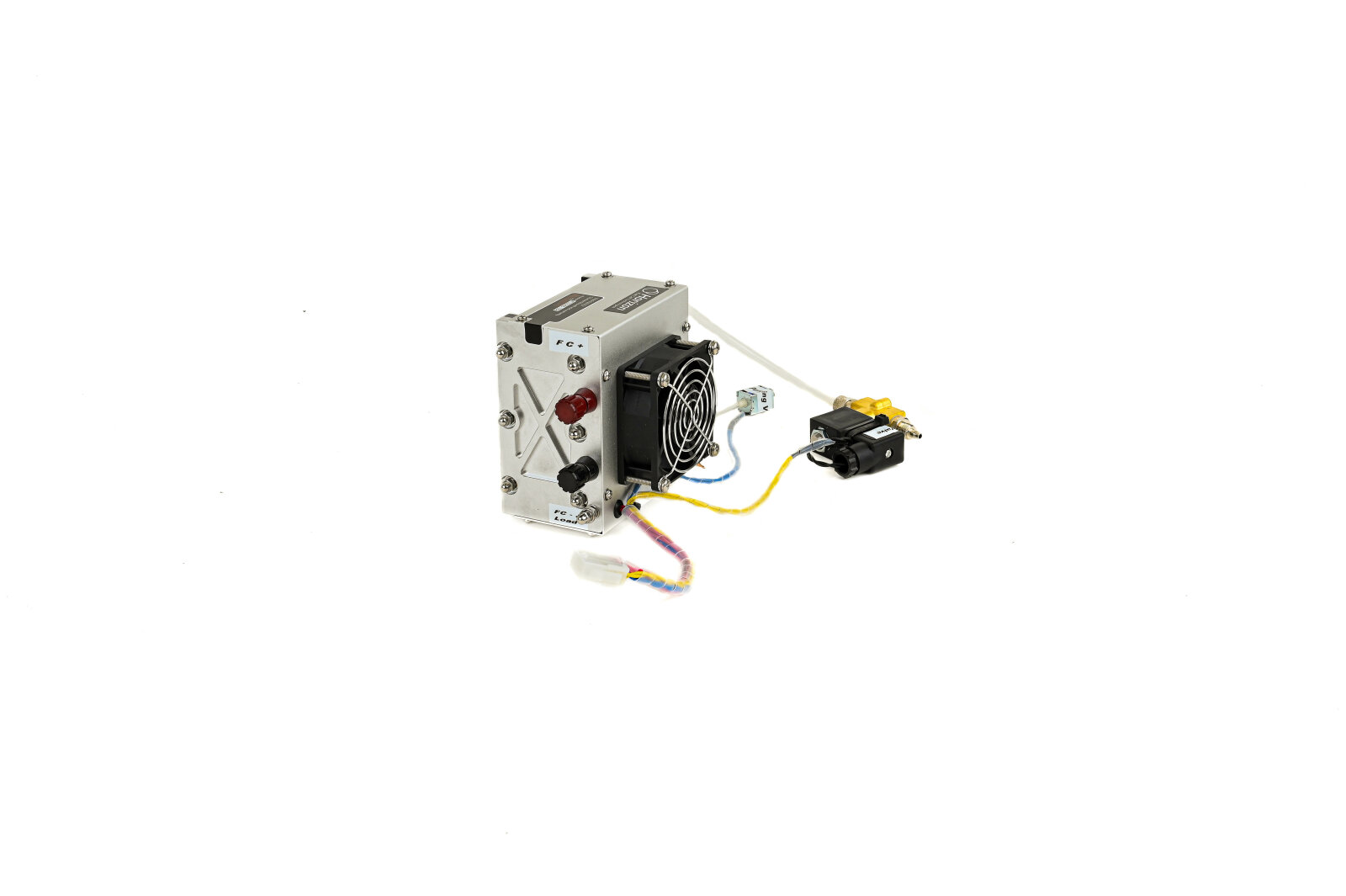

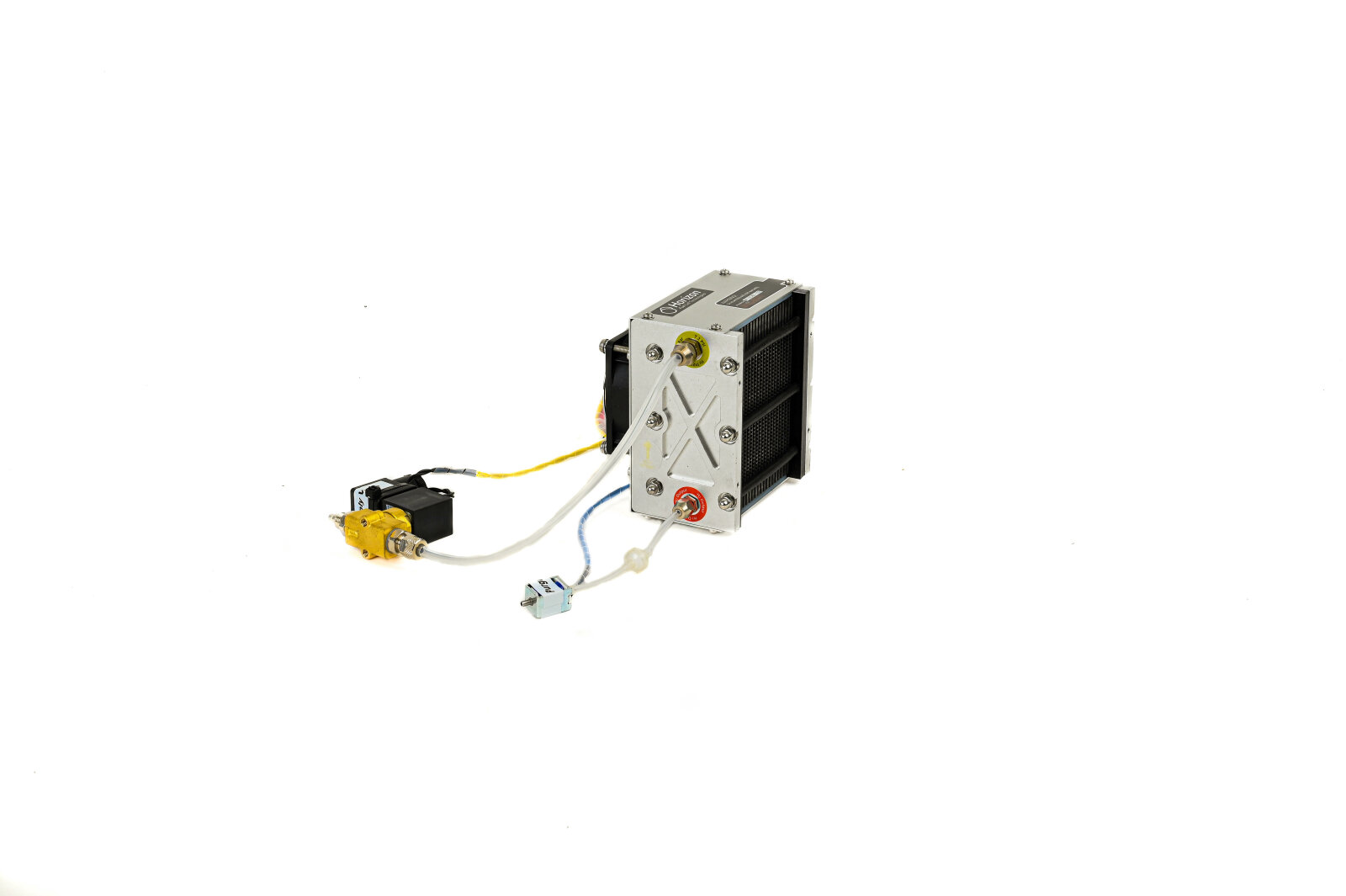

Fuel Cell Stack 100W

Additional Information

It is possible to purchase the H-100 without any supporting components.  However, Horizon Educational recommends contacting us to build an easy-to-use bundle in order to facilitate integration of this fuel cell stack into your project.  Click here to fill out a quote request form if you would like to create a complete package of fuel cell stack accessories that includes.



Hydrogen Blog

Did you know that both Hyundai and Toyota are selling full-sized FCEVs that a person can take home today?  We are totally serious!  Please check out our blog to learn more about hydrogen fuel cell electric vehicles, which are the most environmentally friendly vehicles commercially available on Earth.  You can also use our blog to stay caught up on our FCEV racing series which is part of our H2GP program.

Fuel Cell Stack 100W Quick Product Facts

Cells

Number of Cells

This fuel cell stack is composed of 20 fuel cells.

Pressure

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.

Temperature

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.

Humidity

Humidification

This fuel cell stack uses self-humidification.

weight

FC Stack Weight

The stack (including fan and casing) weighs 3.14lbs / 1.5kg.

weight 2

Controller Weight

The weight of the controller is .88lbs / 400g.

efficiency

System Efficiency

At 72 volts the efficiency of the system is 40%.

external power supply

External Power Supply

Proper operation of the stack requires an external power supply of 13 volts at 5 amperes.

H-100

Performance: 12V@8.3A
Hydrogen consumption at rated power: 1.3l/min.
Stack dimensions: 11.8 x 10.4 x 9.4cm
Controller dimensions: 13,4 x 7,5 x 3,9cm

List of H-100 components:

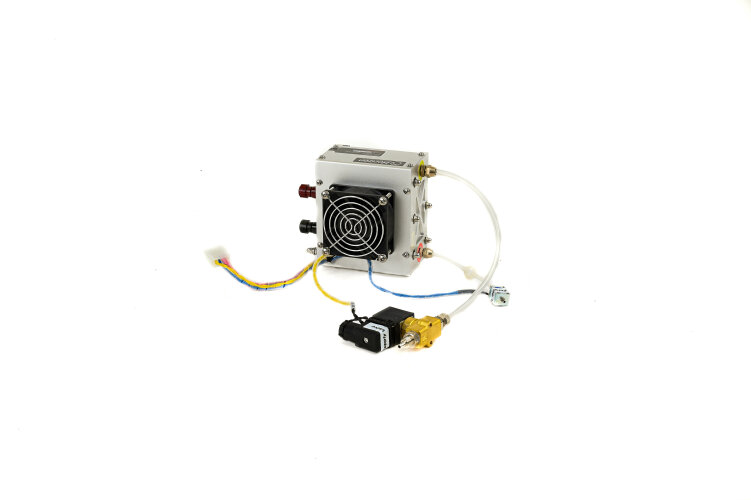

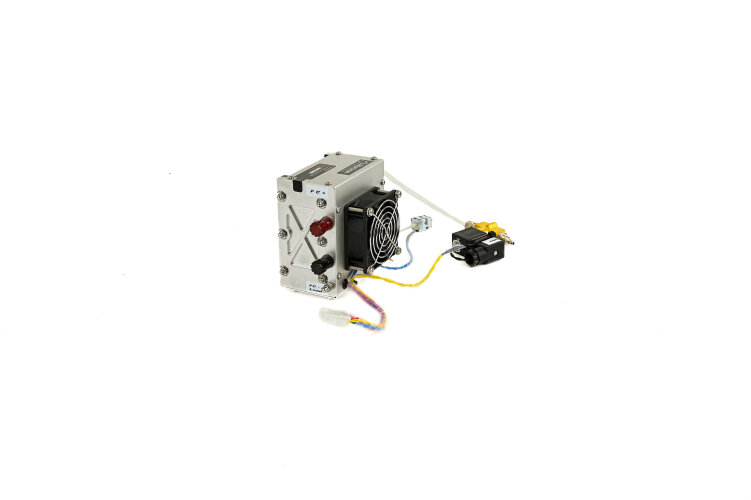

1 x 100W fuel cell stack (includes supply valve, purge valve, blower)

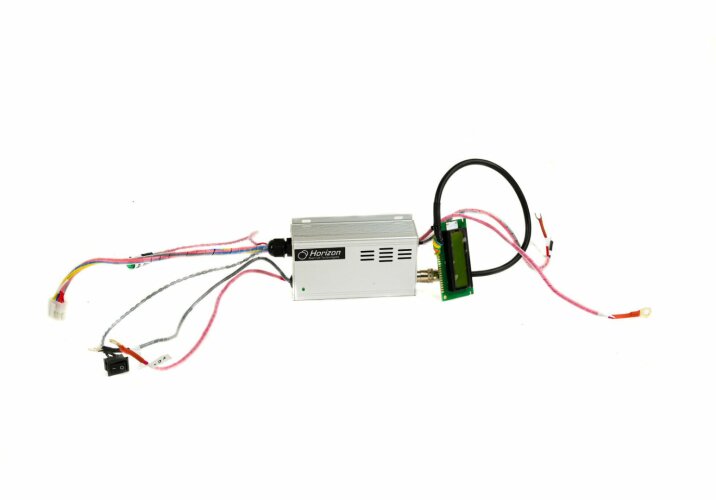

1 x controller (includes short circuit unit)
1 x silicon tube (OD 4 x ID 2mm), 50cm long
1 x silicon tube (OD 6 x ID 3mm), 50cm long
1 x filter
3 x screw M6

3 x nut M6
6 x washer
2 x outlet gas fitting (M5-4)
2 x inlet gas fitting (M5-6)
1 x LCD Display

Downloads

User Manual

pdf [3.7 MB]

User Manual

pdf [1.23 MB]

Brochure You need to be Logged in to download these files

pdf [880.45 kB]
pdf [880.45 kB]

This product is only on demand. Please contact us.

Request a Quote
