H-100 PEM Fuel Cell - 100W
100W PEM Fuel Cell Stack Overview
This larger sibling to the 60W fuel cell stack from Horizon Fuel Cell Technologies works well for beginner mobility applications such as drones that collect garbage or for weather stations where electricity is needed to transmit data to another location. The dimensions of the fuel cell are sufficient to allow a few solar panels to be positioned onto a structure that goes around the fuel cell, which would provide 24x7 electricity production regardless of weather conditions.
The following components are included with this fuel cell stack:
- Connection tubing
- Electronic Valves

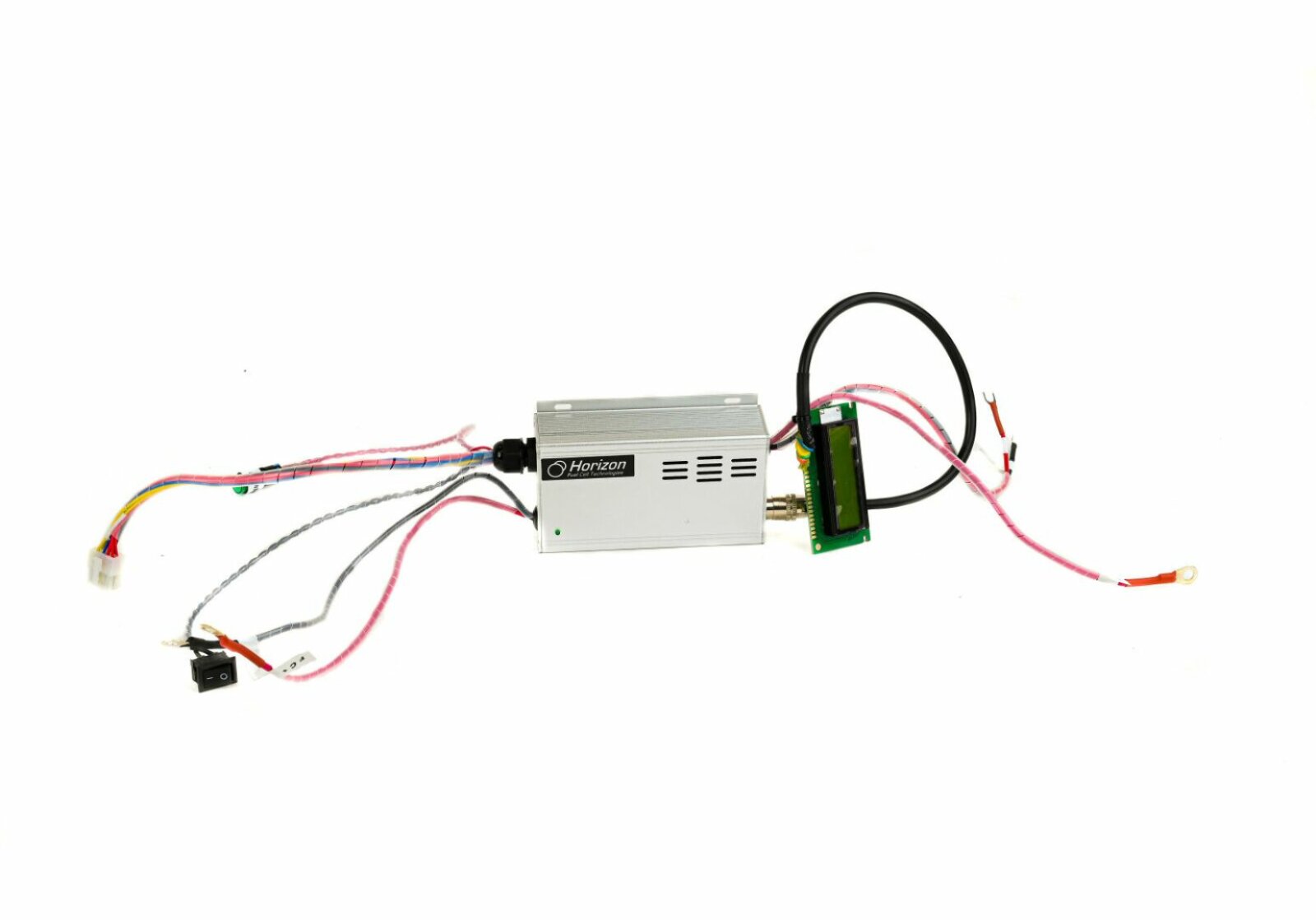

- Electronic Control Box
- Fuel Cell On/Off Switch
- SCU On/Off Switch

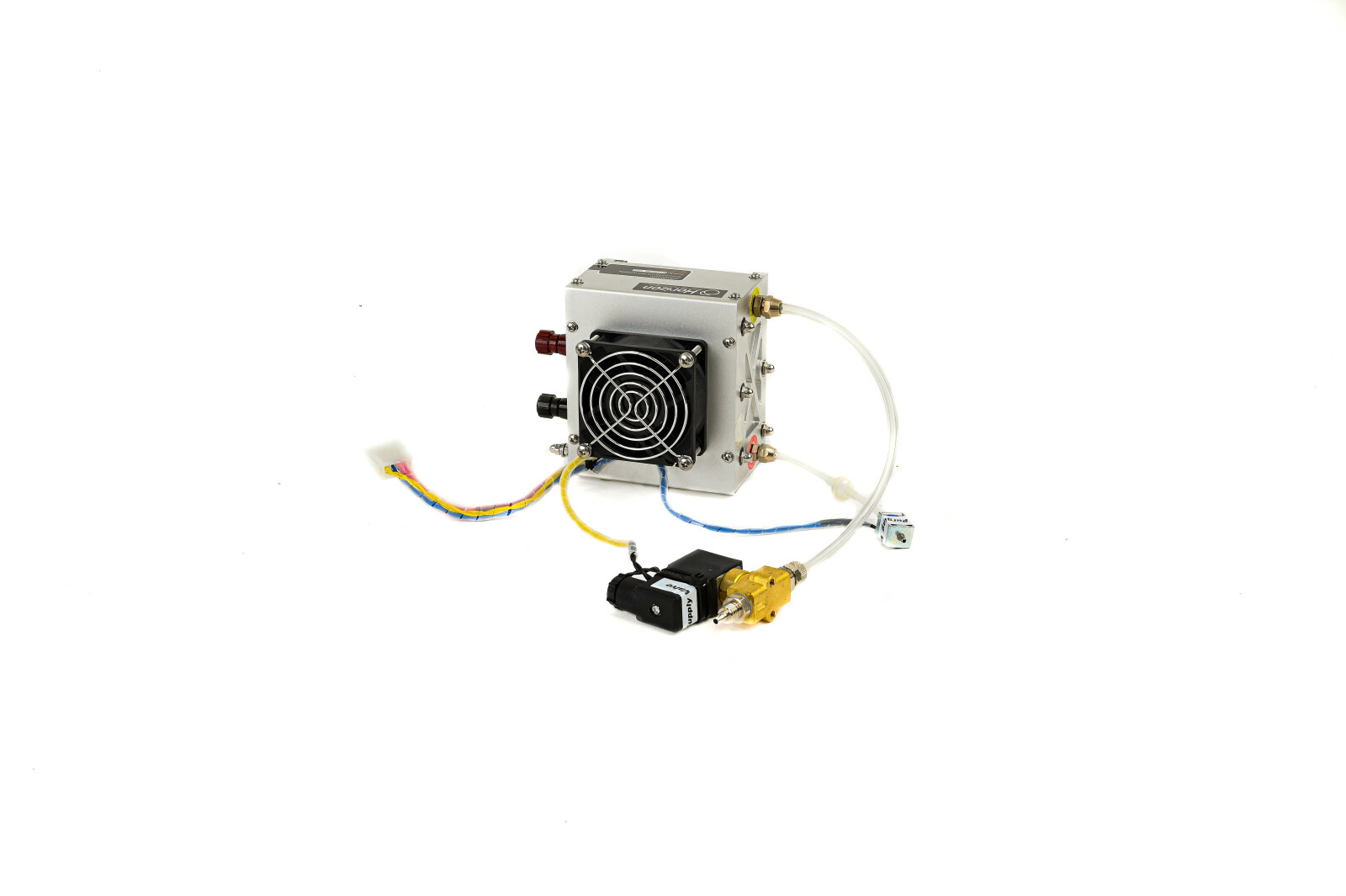

Fuel Cell Stack 100W
It is possible to purchase the H-100 without any supporting components. However, Horizon Educational recommends contacting us to build an easy-to-use bundle in order to facilitate integration of this fuel cell stack into your project. Click here to fill out a quote request form if you would like to create a complete package of fuel cell stack accessories that includes.
Hydrogen consumption at rated power: 1.3l/min.
Stack dimensions: 11.8 x 10.4 x 9.4cm
Controller dimensions: 13,4 x 7,5 x 3,9cm
Fuel Cell Stack 100W Quick Product Facts
Number of Cells
This fuel cell stack is composed of 20 fuel cells.
Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.
The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.
This fuel cell stack uses self-humidification.
FC Stack Weight
The stack (including fan and casing) weighs 3.14lbs / 1.5kg.
The weight of the controller is .88lbs / 400g.
At 72 volts the efficiency of the system is 40%.
External Power Supply
Proper operation of the stack requires an external power supply of 13 volts at 5 amperes.
List of H-100 components:
1 x 100W fuel cell stack (includes supply valve, purge valve, blower)
1 x controller (includes short circuit unit)
1 x silicon tube (OD 4 x ID 2mm), 50cm long
1 x silicon tube (OD 6 x ID 3mm), 50cm long
1 x filter
3 x screw M6
3 x nut M6
6 x washer
2 x outlet gas fitting (M5-4)
2 x inlet gas fitting (M5-6)
1 x LCD Display
Recommended optional items:
Controller adjustment for connection with computer (RS232)
Pressure regulator for stacks 6mm
Battery pack 12V/2.5Ah with charger
8 in 1 connectors for Hydrostik PRO
Hydrostik PRO (10 units)
1step pressure regulator (10 units)
