H-1000 PEM Fuel Cell - 1000W

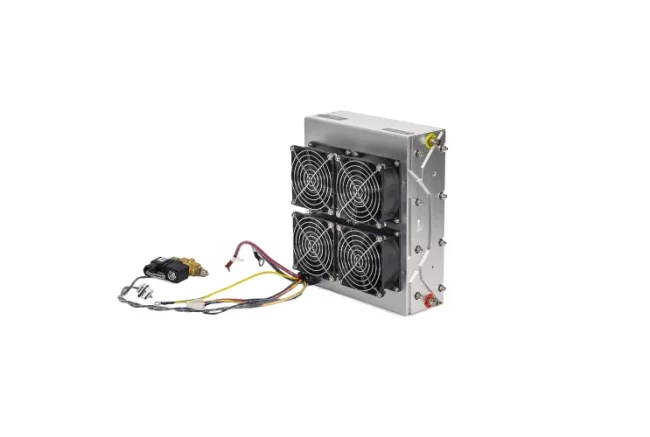

1kW PEM Fuel Cell Stack Overview

With 1,000-watts of power this fuel cell is ready for a wide range of applications.  With its lower noise profile and ability to provide power regardless of the weather, this fuel cell stack makes a great companion for off-grid homes.  The same is true for sailboats who want to reduce their emissions to zero.  This fuel cell stack provides enough power to effectively navigate in and out of ports without worrying about the long recharge time of batteries, and it is zero emission environmentally friendly solution.

Also included with this fuel cell stack are:

  • Connection Tubing
  • Electronic Valves

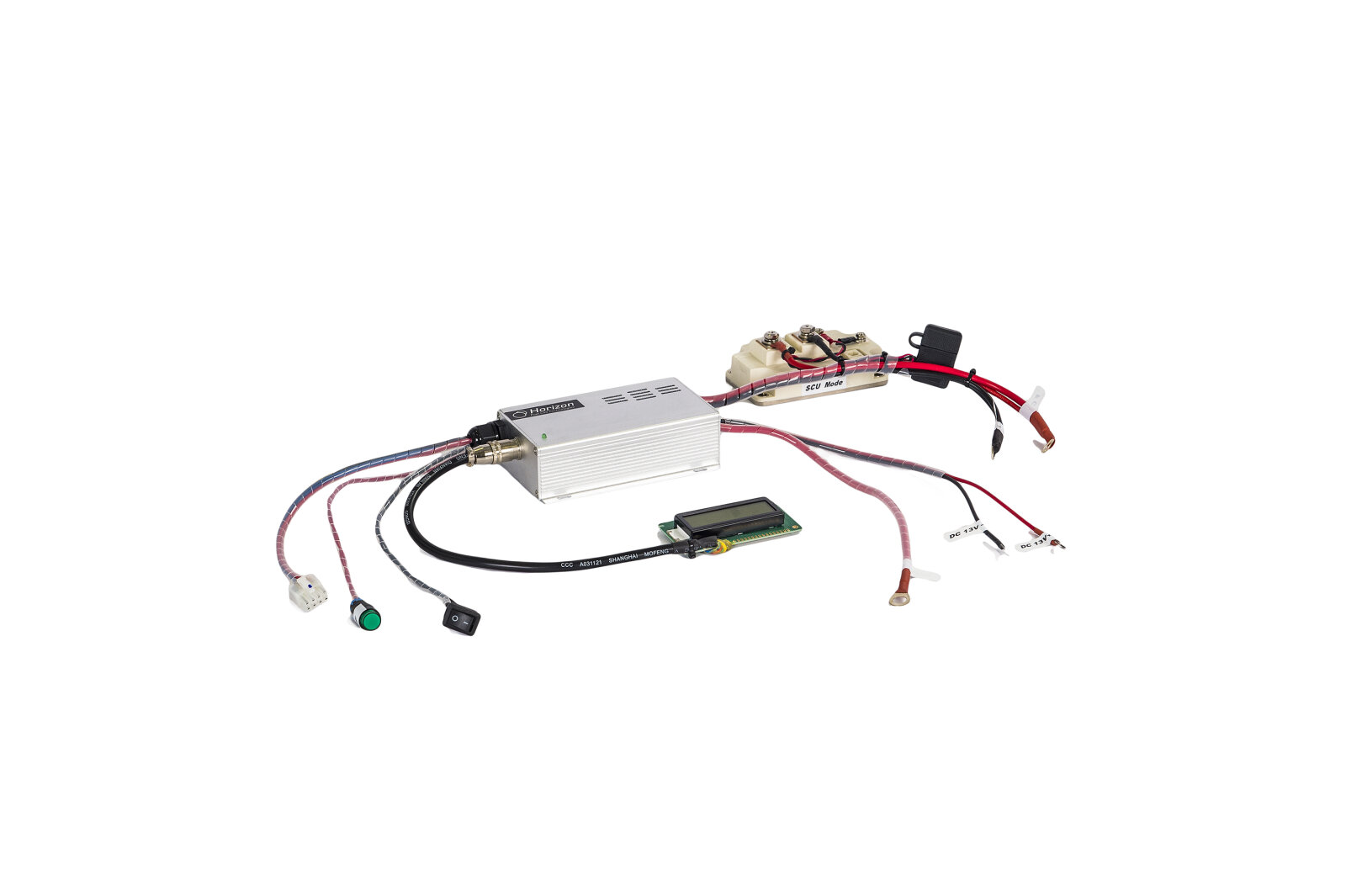

  • Electronic Control Box
  • Fuel Cell On/Off Switch
  • SCU On/Off Switch

Fuel Cell Stack 1kW

Additional information

Please fill out a quote request form so that we can help you place an order for this fuel cell stack, provide proper delivery expectations, and answer any questions you may have about this hydrogen fuel cell stack.  We only hold a limited quantity of 1kW fuel cell stacks in-stock at any given time.

1kW Fuel Cell and Hydrogen

Safety Requirements

Do not connect or disconnect power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is disassembled or otherwise altered. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any leaking hydrogen within the system or from the hydrogen storage canister. Please refer to the H-1000 User Manual to see a complete list of the safety requirements for the product.

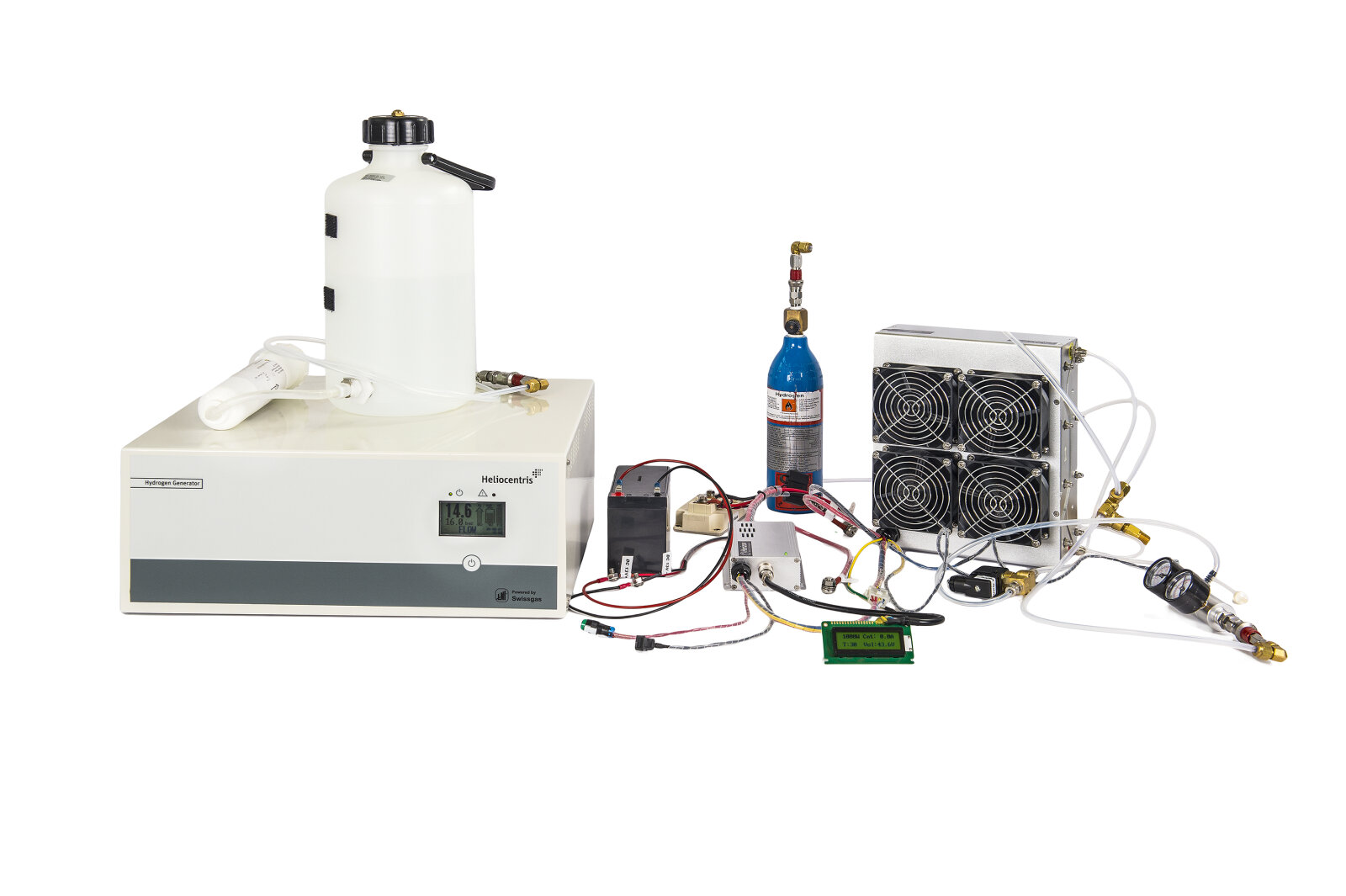

H-1000 PEM Fuel Cell with Electrolyzer and MH

Fuel Cell Stack 1000W Quick Product Facts


Number of Cells

This fuel cell stack is composed of 48 fuel cells.


Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.


Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.



This fuel cell stack uses self-humidification.


FC Stack Weight

The stack (including fan and casing) weighs 12.8lbs / 5.8kg.

weight 2

Controller Weight

The weight of the controller is 1.3lbs / 0.6kg.


System Efficiency

At 28.8 volts the efficiency of the system is 40%.

external power supply

External Power Supply

Proper operation of the stack requires an external power supply of 13 volts at 8 amperes.


User Manual

pdf [3.7 MB]
pdf [2.51 MB]


pdf [880.45 kB]

This product is only on demand. Please contact us.

Request a Quote
