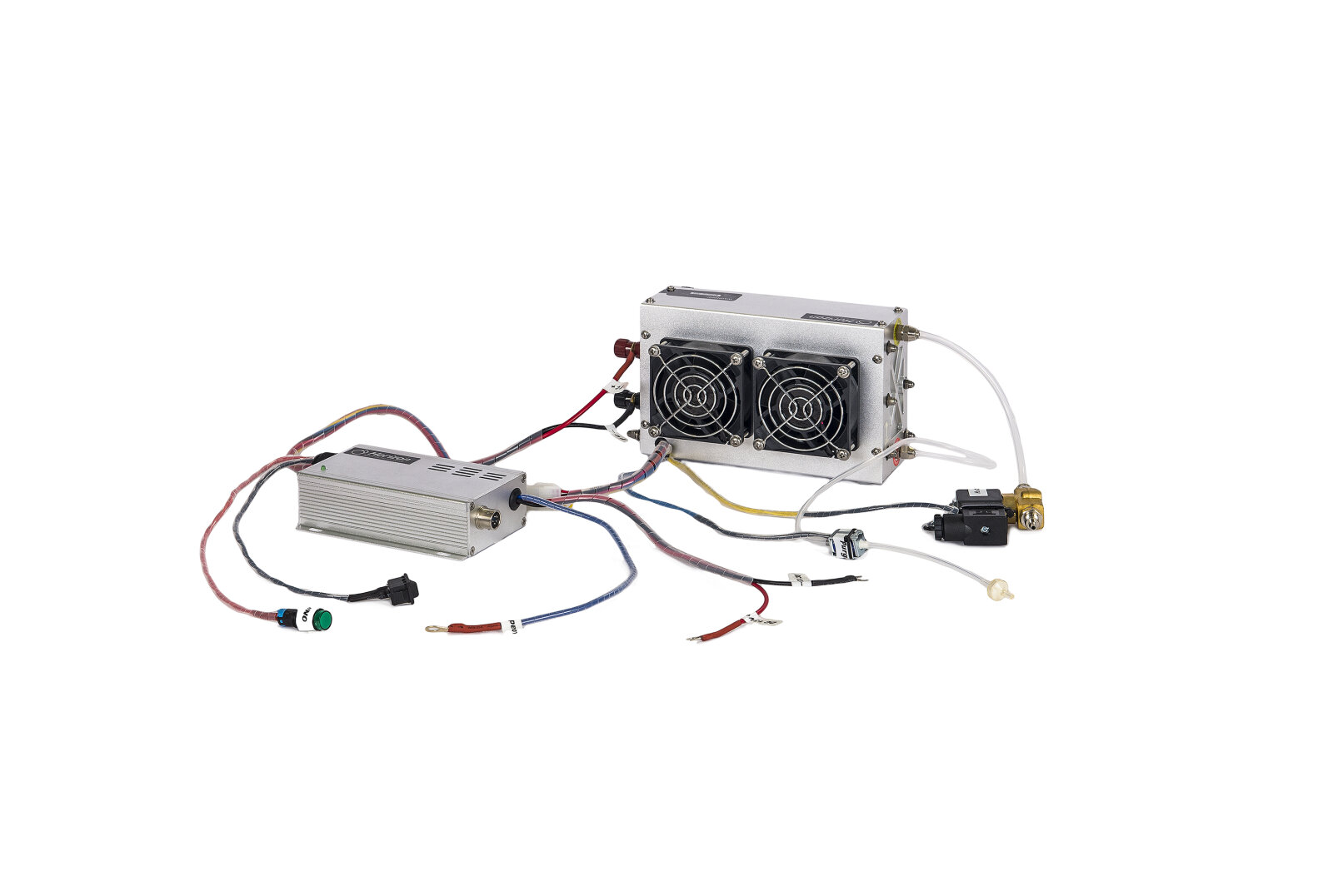

H-200 PEM Fuel Cell - 200W

200W PEM Fuel Cell Stack Overview

The H-200 fuel cell stack is the first in a series of hydrogen fuel cell stacks that are equally capable of being used in mobility and stationary applications.  It can provide backup power for a remote site or it can be used to electrify a scooter.  This fuel cell stack can cut down on the time it takes to get a product to market, because it only requires integration into a product.  This allows customers to skip the R&D phase that would typically be needed to create their own fuel cell stacks.

Like other Horizon Fuel Cell Technologies products, the H-200 comes with the following:

  • Connection Tubing
  • Electronic Valves
  • Electronic Control Box
  • Fuel Cell On/Off Switch
  • SCU On/Off Switch
FCS-C200_H-200PEMFuelCell200W

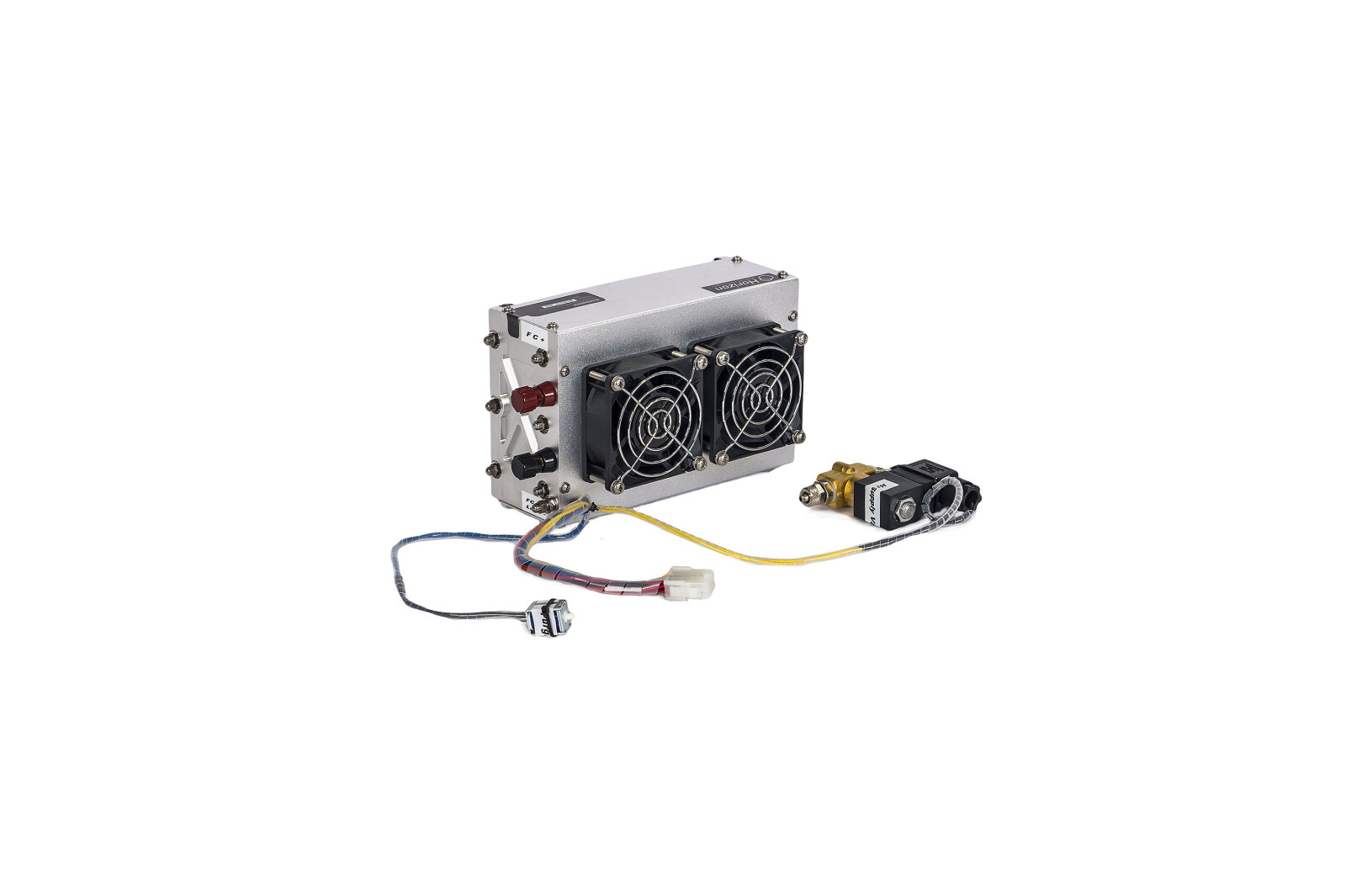

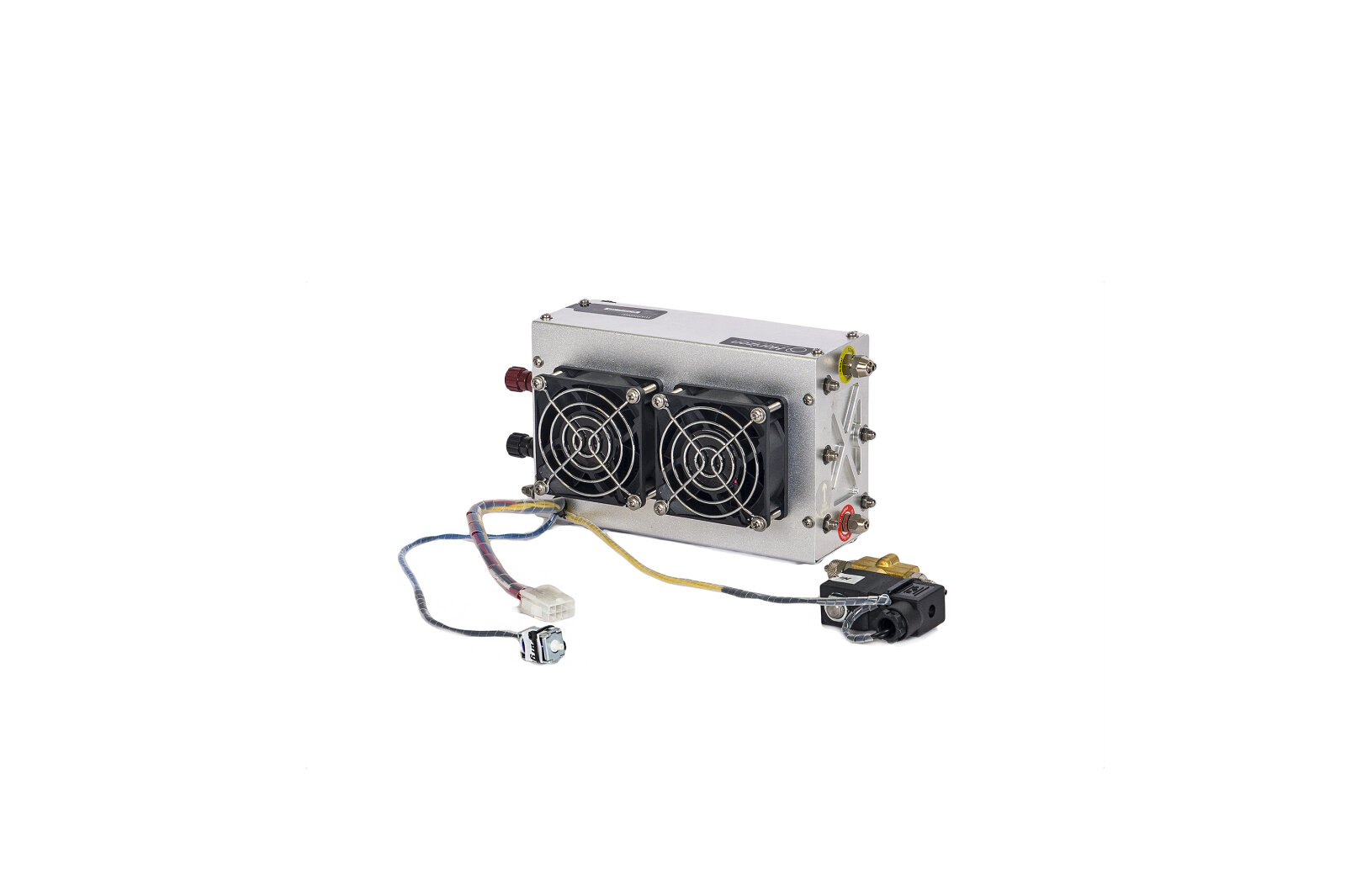

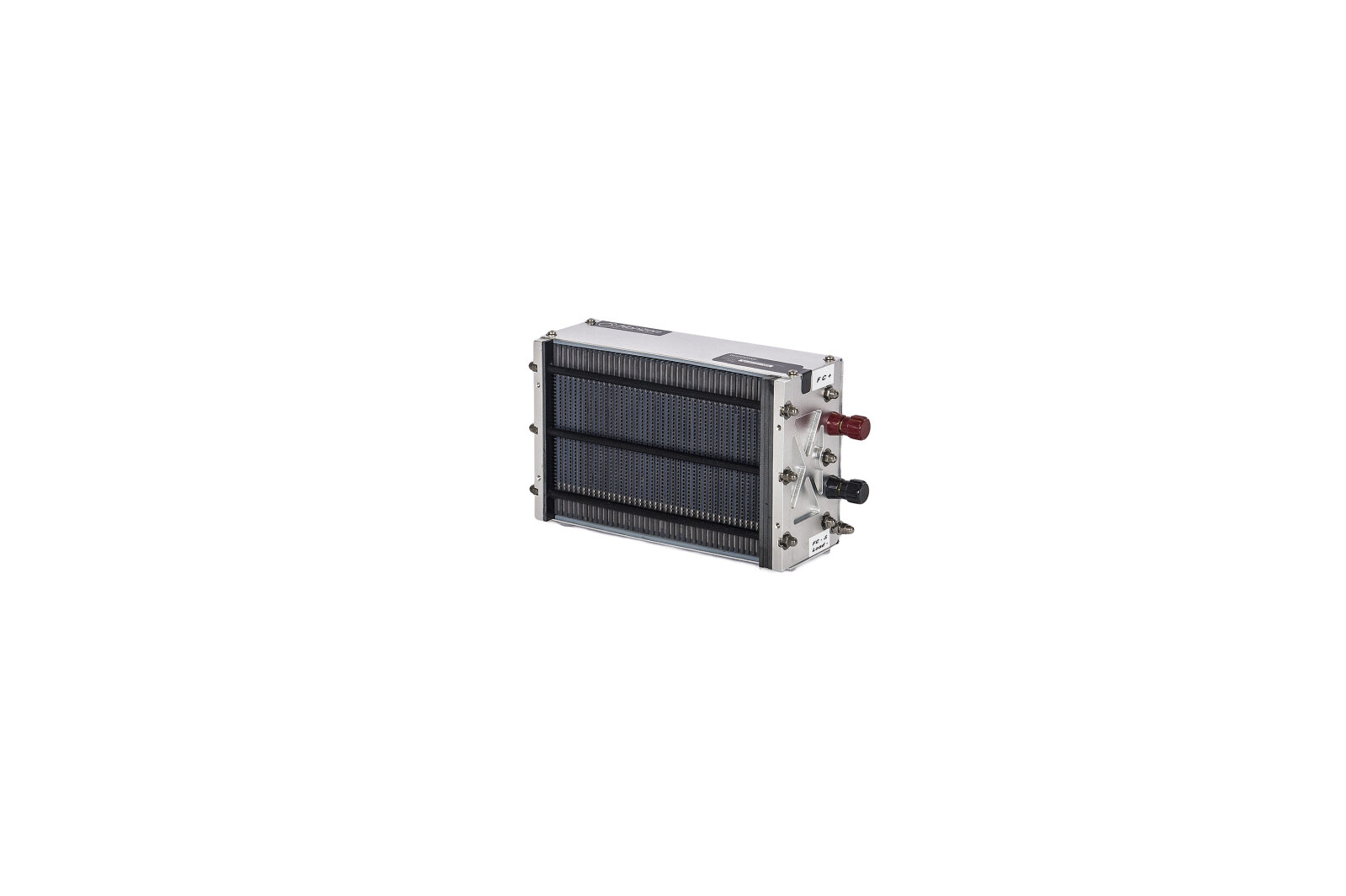

Fuel Cell Stack 200W

Additional Information

Horizon Educational highly recommends filling out a quote request form. By doing this we can reach out to you and help you determine what fuel cell stack accessories you made need for faster integration of this fuel cell stack into your project.  Please click here to fill out the form.  However, if you feel more comfortable, then you may purchase just the standalone fuel cell stack.

200W Fuel Cell and Hydrogen

Safety Requirements

Do not connect or disconnect power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is disassembled or otherwise altered. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any leaking hydrogen within the system or from the hydrogen storage canister. Please refer to the H-200 User Manual to see a complete list of the safety requirements for the product.

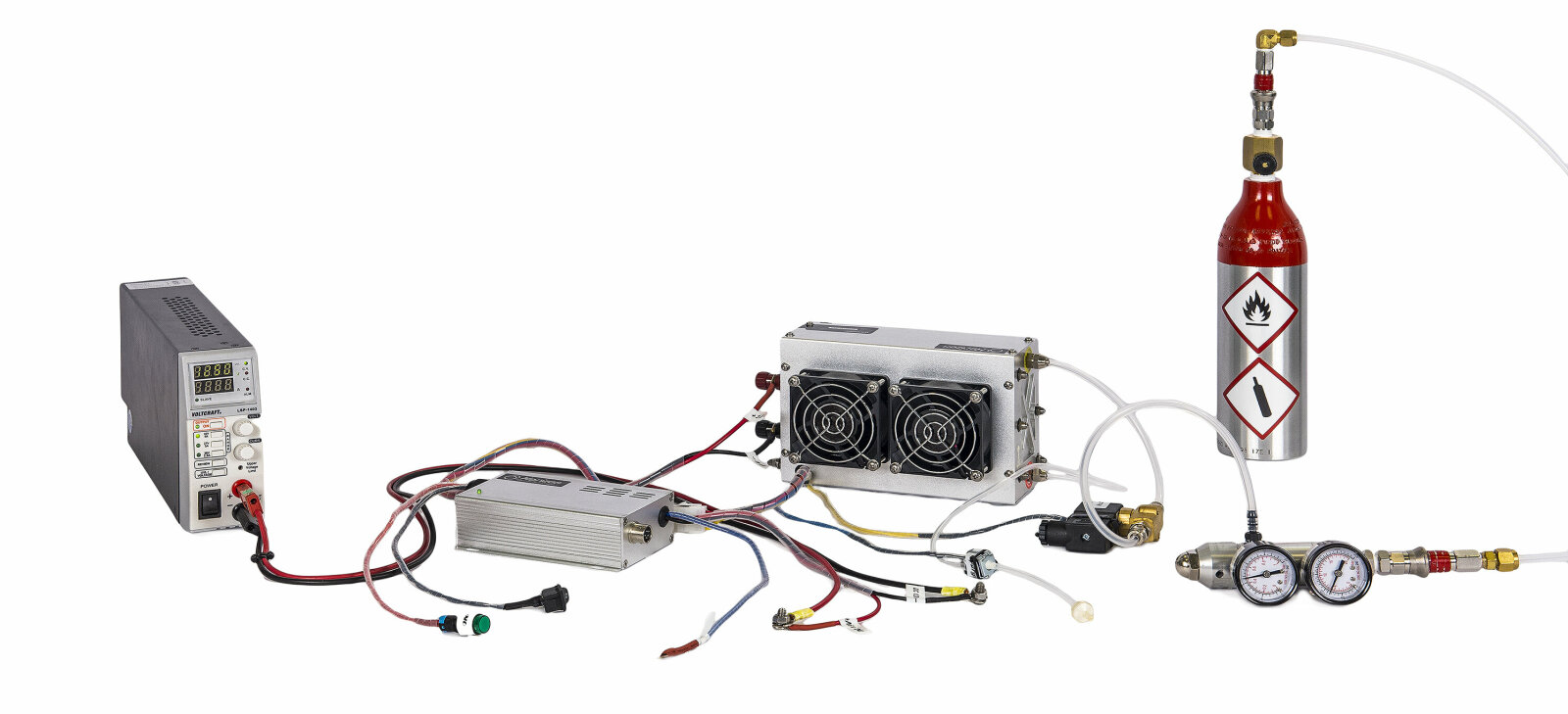

H-200 PEM Fuel Cell with MH

Fuel Cell Stack 200W Quick Product Facts

Cells

Number of Cells

This fuel cell stack is composed of 40 fuel cells.

Pressure

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.

Temperature

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.

Humidity

Humidification

This fuel cell stack uses self-humidification.

weight

FC Stack Weight

The stack (including fan and casing) weighs 4.91lbs / 2,230g.

weight 2

Controller Weight

The weight of the controller is 0.88lb / 400g.

efficiency

System Efficiency

At 24 volts the efficiency of the system is 40%.

external power supply

External Power Supply

Proper operation of the stack requires an external power supply of 13 volts at 5 amperes.



Downloads

User Manual

pdf [3.7 MB]

User Manual

pdf [1.25 MB]

Brochure You need to be Logged in to download these files

pdf [880.45 kB]

This product is only on demand. Please contact us.
