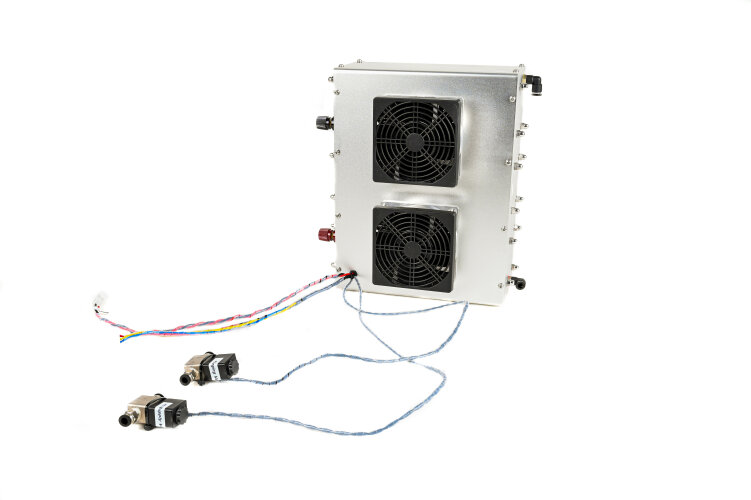

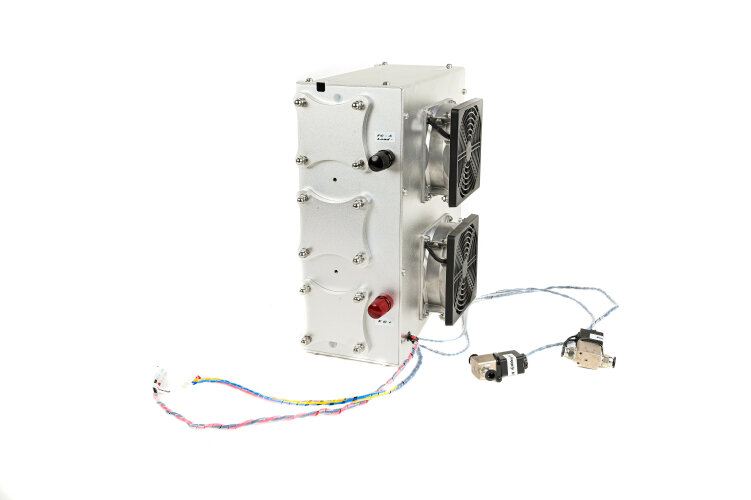

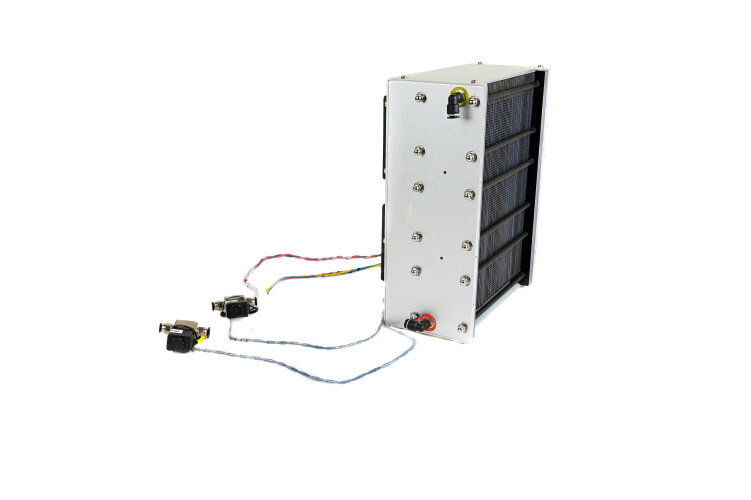

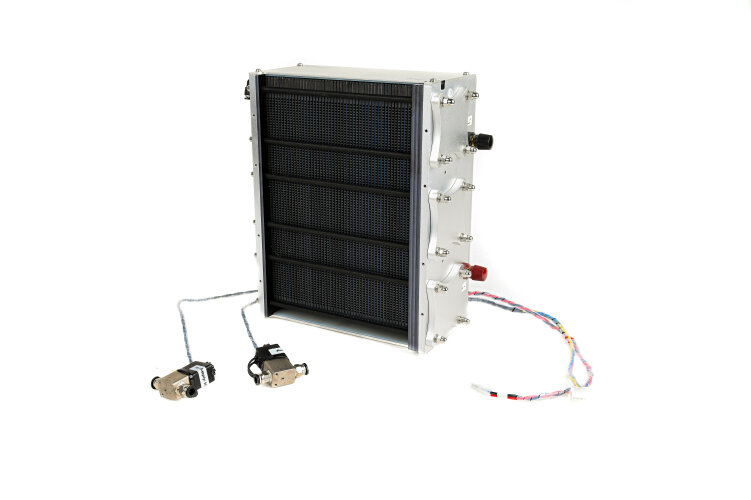

H-2000 PEM Fuel Cell - 2000W

2kW PEM Fuel Cell Stack Overview

This fuel cell stack is the first stack that offers organizations real opportunities to take their businesses to the next level. Three or four of the H-2000 stacks would be a great tool with which to make a glamping experience more eco-friendly for guests, since the stacks could provide all of the electricity guests need.  The water generated from using the fuel cell stacks could be fed into a pool or a similar water feature to reduce the impact of the amenity on local water needs.  This fuel cell stack would also be sufficient to completely electrify every part of a moderate sized sailboat as well as many other projects.

This fuel cell stack includes the following:

  • Connection Tubing
  • Electronic Valves
  • Electronic Control Box
  • Fuel Cell On/Off Switch
  • SCU On/Off Switch
FCS-C2000_H-2000_PEM_Fuel_Cell-2kW

Fuel Cell Stack 2kW

Additional information

As with all higher wattage stacks, please click here to complete a quote request form in order for us to reach out to you with product availability, shipping times, and other relevant information.  While we do try to keep a few on hand at all times, we do occasionally sell out of this fuel cell stack.  We can also help with determining what additional items may be needed to blend this fuel cell stack into your project.

Fuel Cell and Hydrogen

Safety Requirements

Do not connect or disconnect power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is disassembled or otherwise altered. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any leaking hydrogen within the system or from the hydrogen storage canister. Please refer to the H-2000 User Manual to see a complete list of the safety requirements for the product.

Fuel Cell Stack 2000W Quick Product Facts

Cells

Number of Cells

This fuel cell stack is composed of 48 fuel cells.

Pressure

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.

Temperature

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.

Humidity

Humidification

This fuel cell stack uses self-humidification.

weight

FC Stack Weight

The stack (including fan and casing) weighs 31lbs / 14kg.

weight 2

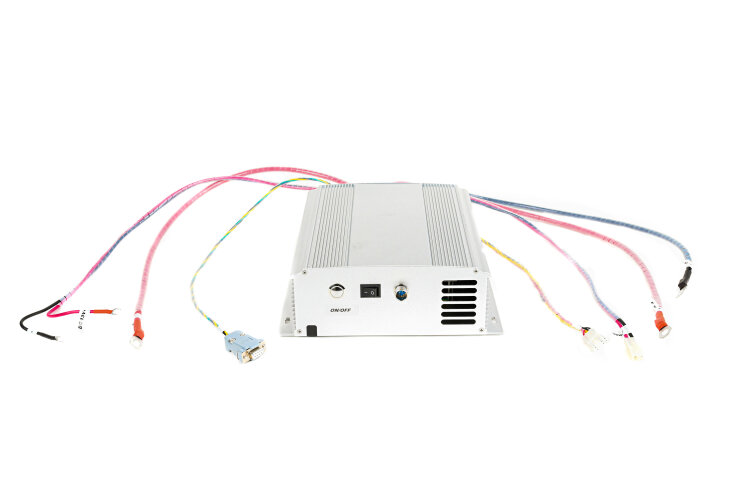

Controller Weight

The weight of the controller is 5.5lbs / 2,500g.

efficiency

System Efficiency

At 28.8 volts the efficiency of the system is 40%.

external power supply

External Power Supply

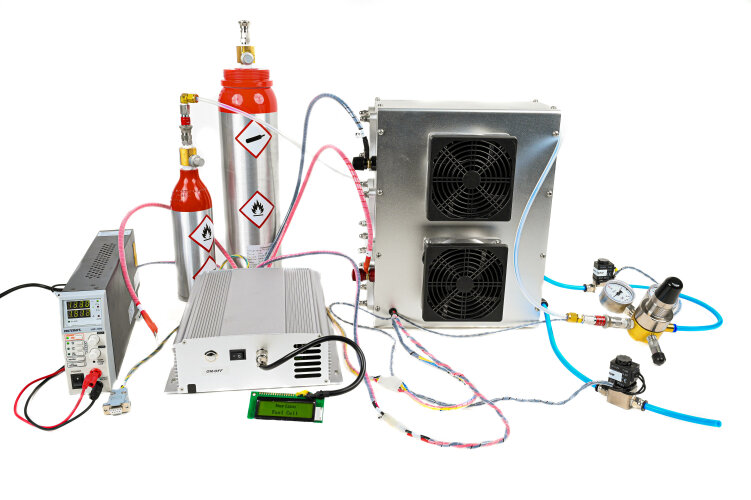

Proper operation of the stack requires an external power supply of 13 volts at 10 amperes.

Downloads

User Manual

pdf [3.7 MB]

User Manual

pdf [1.32 MB]

Brochure You need to be Logged in to download these files

pdf [880.45 kB]

This product is only on demand. Please contact us.
