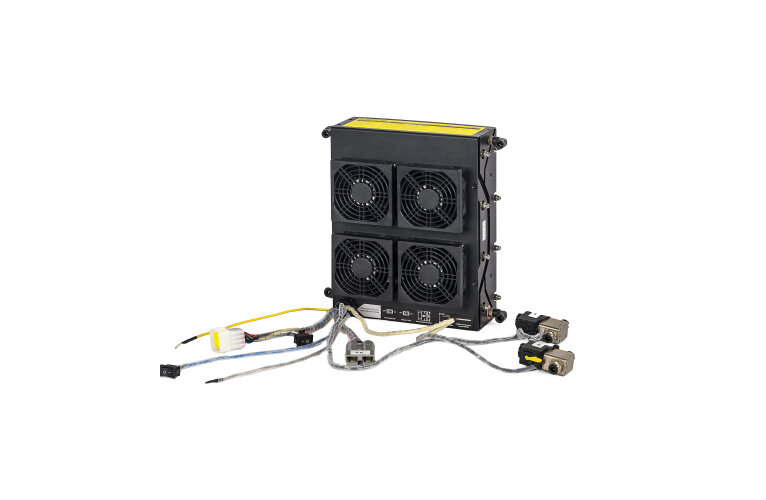

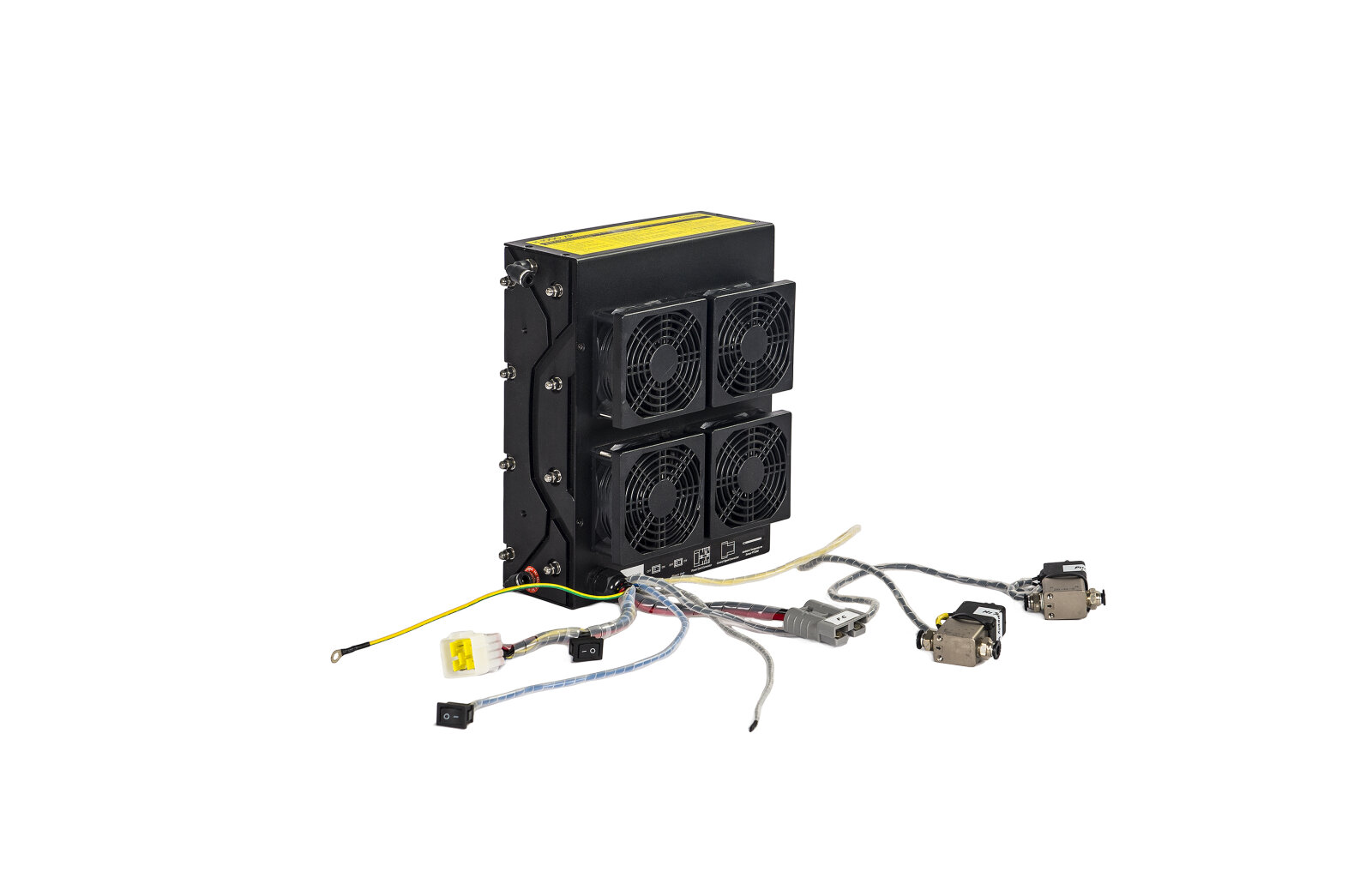

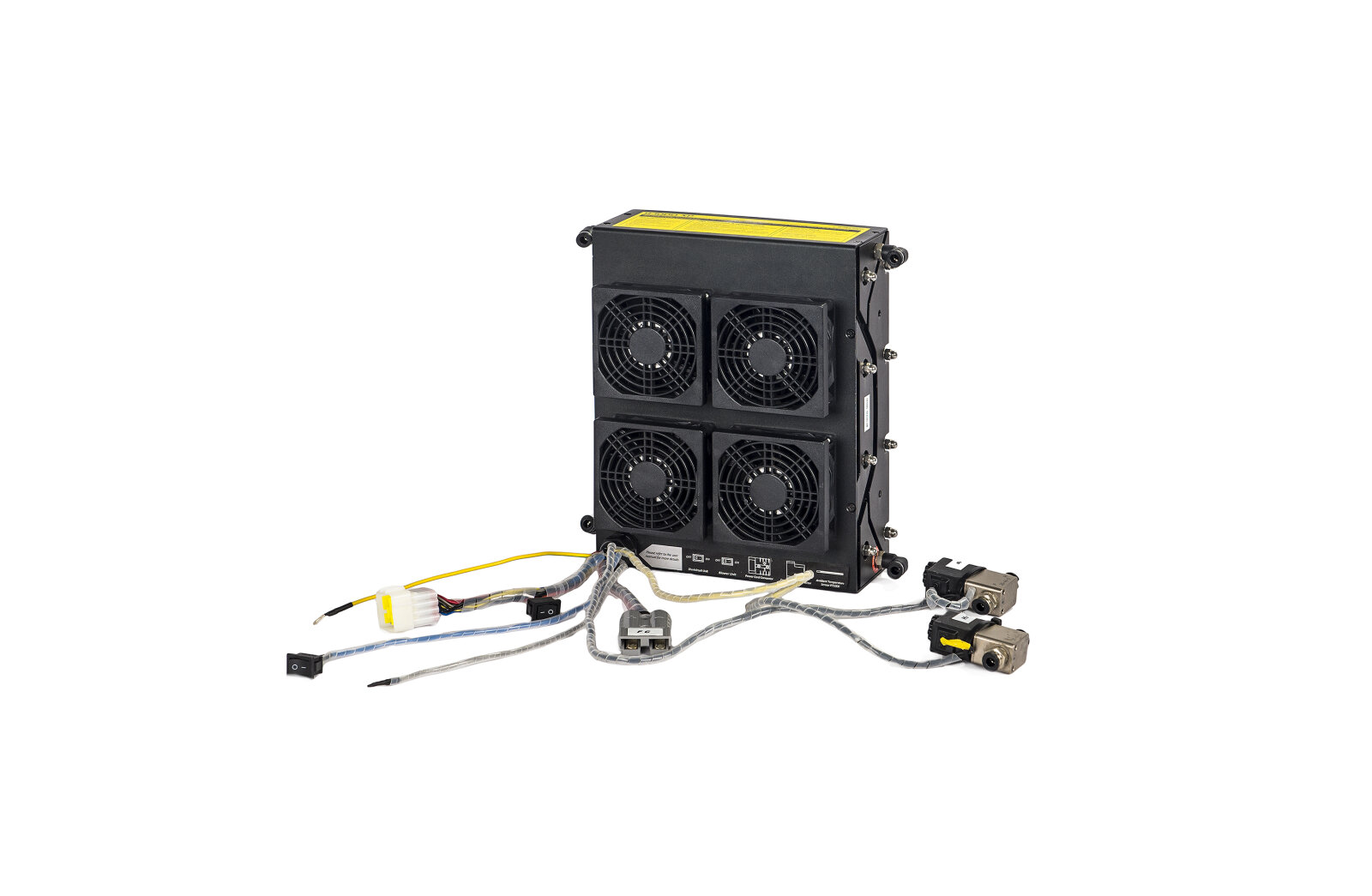

H-1000 XP Fuel Cell Stack

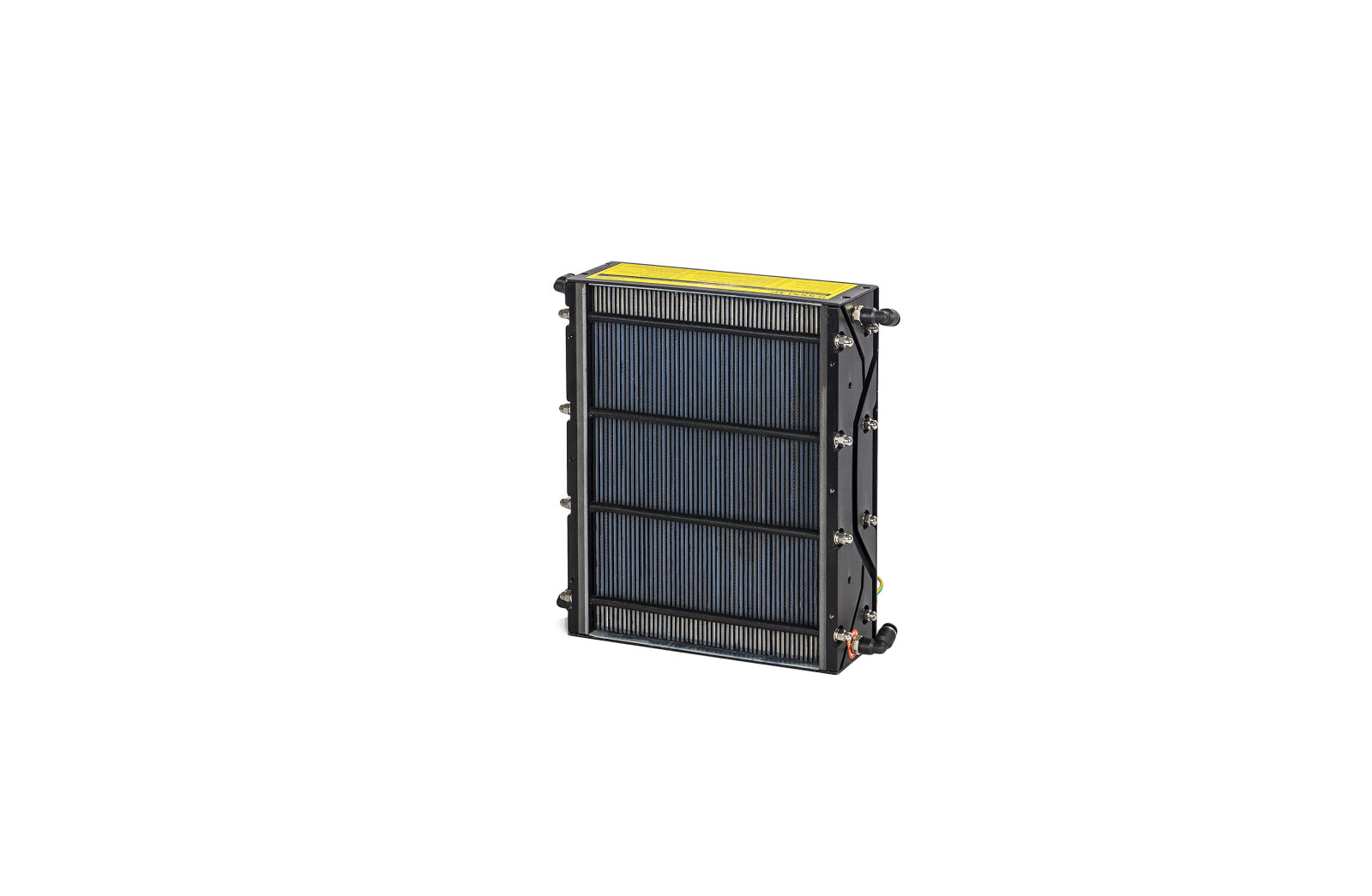

1kW XP PEM Fuel Cell Stack Overview

This is the only other kW fuel cell stack that is part of the XP Series, and like its sibling it is designed for educational or industrial mobility applications.  KW fuel cell stacks can still be used to power a car or other land-based vehicles, but this fuel cell stack can also be integrated into a sailboat and other applications.   However, fuel cell stacks in this series are equally suited to stationary applications and can be used to provide a supplemental energy source to power off-grid homes.  Another stationary use of this fuel cell would be for organizations that offer glamping experiences to customers, since it is eco-friendly and can provide electricity and water to customers.  With its higher efficiency level this stack offers even more compelling use cases over traditional diesel and gasoline generators when used in a stationary format.

This fuel cell stack comes with the following:

  • Connections/Tubing
  • Electronic Valves

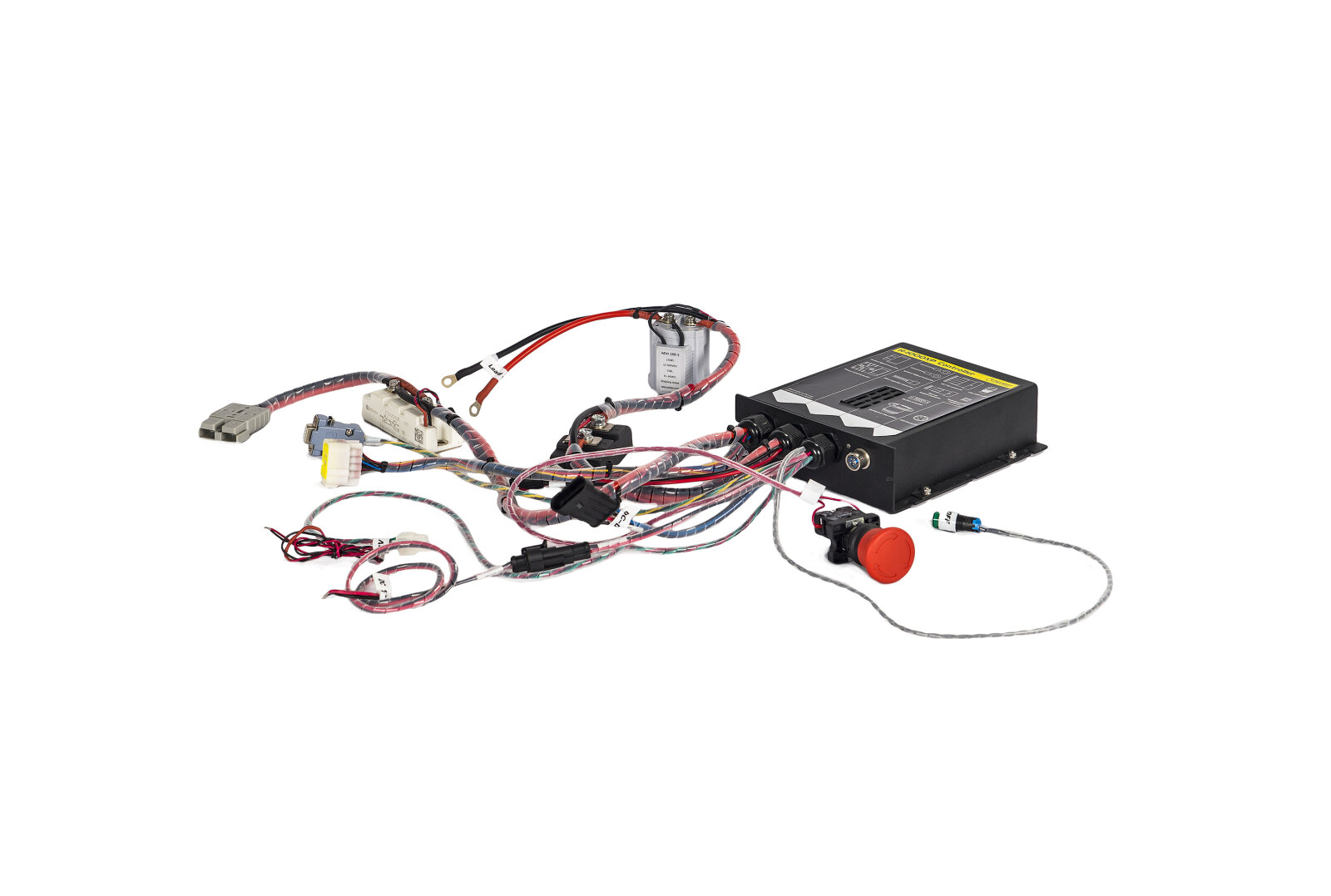

  • Electronic Control Box with Blower
  • Stack Holder
  • LCD Display
  • SCU On/Off
  • Startup Battery Connector
  • Ambient Temperature Sensor
  • Blower Controller
FCS-B1000XP H-1000 XP Fuel Cell Stack

Fuel Cell Stack 1kW XP

Additional information

As with its sibling the H-500 XP, Horizon Educational requests that you complete a quote request form in order to obtain pricing information.  We can also provide proper delivery expectations should you purchase this fuel cell product.  Both of the fuel cell stacks in the XP Series are air cooled stacks and require a gaseous hydrogen purity of at least 99.995% in order to operate.

Fuel Cell and Hydrogen

Safety Requirements

Do not attach or detach power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is dismantled or otherwise modified. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any hydrogen that has escaped within the system or from the hydrogen storage canister. Please refer to the H-1000 XP User Manual to see the full list of the safety requirements for the product.

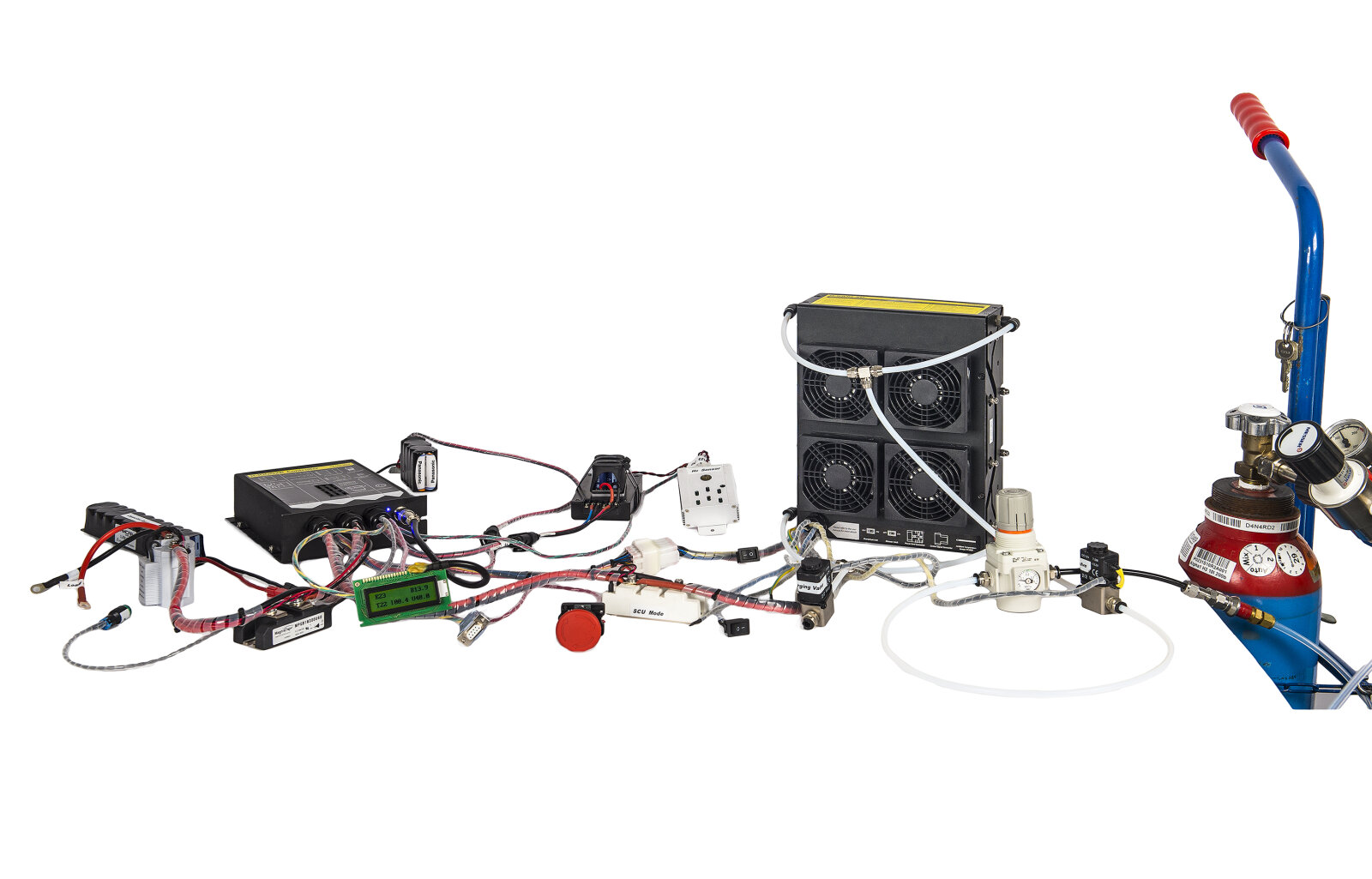

H-1000 XP with Accessories

Fuel Cell Stack 1kW XP Quick Product Facts


Number of Cells

This fuel cell stack is composed of 50 fuel cells.


Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 7.2 to 9.4 PSI.


Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 41 to 95° F / 5-35° C.


FC Stack Weight

The stack (including fan and casing) weighs 11lbs / 5kg.


System Efficiency

At 30 volts the efficiency of the system is 40%.



This fuel cell stack uses self-humidification.


User Manual

pdf [12.29 MB]


pdf [832.96 kB]

This product is only on demand. Please contact us.
